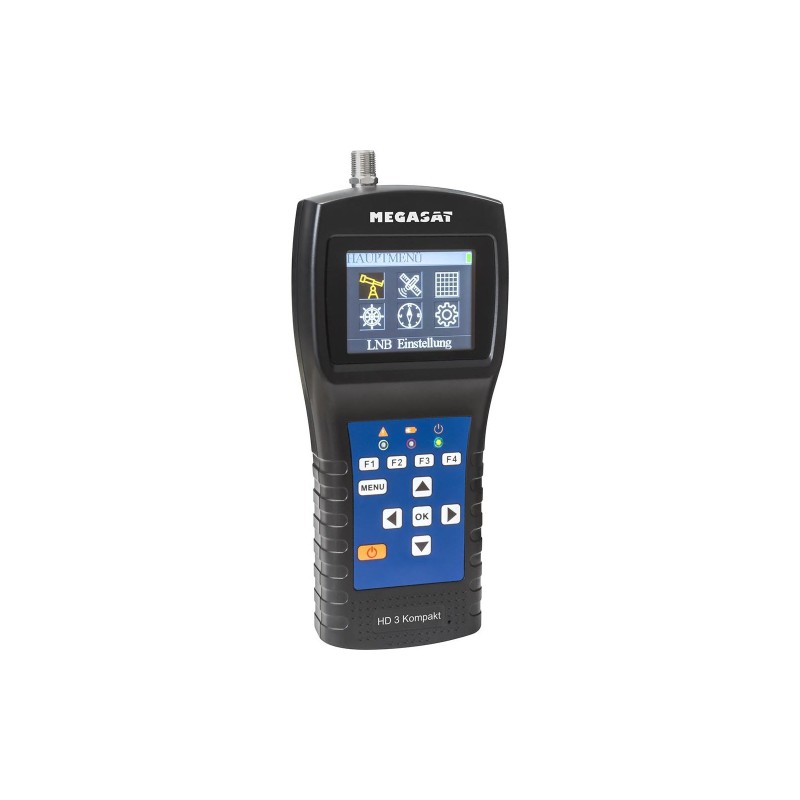

Megasat HD 3 compact satellite meter

Quick and accurate satellite search with compact HD3

The HD 3 compact is a practical and ideal measuring device for quick and accurate satellite search. It is possible to measure DVB-S and DVB-S2 (HD) signals. The integrated LCD display offers a 2.3-inch display diagonal (6 cm). The operation is a children's play with the clear and clearly structured screen surface. All important information, such as satellite, transponder, C/N, BER and dBμV, is shown in live measurement.

Spectrum analysis and constellation for troubleshooting

The integrated spectrum and constellation analysis provides an accurate assessment of the measurement data to allow you to perform a quick error analysis and optimal adjustment of the satellite system.

Additional data:

Speaker:

integrated

to sue:

dBμV/CNR/BER/MER

Battery package:

Lithium Ions (8.4 V / 3000 mA/h)

Dimensions (L/A/P):

177x80x34mm

Weight:

222g

USB Micro USB port (updating the satellite list and channels / firmware updates

Scope of delivery: HD 3 compact satellite meter, 230 V load adapter, 12 V car load adapter, protective cover with conveyor belt, instruction manual.

The Digital 1 HD is a measuring device to quickly and easily align a digital satellite system. It is possible to measure DVB-S and DVB-S2. The built-in color display has a 3.5-inch display diagonal (8.9 cm). The operation is a children's game with the clear and clearly structured menu.

Great signal level display and live TV image playback

To align a mirror, first pray on the level and quality of the signal. You can change this to a large screen with just pressing a button to make optimal use of representation on the screen.

The measuring device has an integrated receiver so you can then verify the live TV image. It is possible to play all free digital programs in SD and HD. In addition, a list of channels with the most common programs is pre-installed, which can also adapt individually to your needs. If the stations or frequencies change, they can be searched through the menu.

Additional functions and many accessories

The automatic detection of NIT satellites immediately shows you which satellite you are in. Minutes of alignment attempts are a thing of the past. There is an additional screen on the meter, where the signal level is constantly displayed, even if it is in another menu on screen. The integrated power battery offers up to 3 hours of operation. It is loaded with a standard power supply of 230 V or with the car charge adapter included when you are out of the house in the car. The attached protective cover with transport belt protects the measuring device of dirt and water splashes. Save the measurement data in the internal memory for further analysis. Satellite lists and channels can be exported or imported via the USB connection.

Additional data:

Speaker:

integrated

Search mode:

Automatic scanning, manual, blind

to sue:

Intensity/quality of signal, C/N, BER, FEC

Battery package:

Lithium Ions (8.4 V / 3000 mA/h

Manage the list of USB port channels/firmware updates

HDMI output:

yes

AV input:

yes

Power switch:

yes

Dimensions (An/Al/Pr):

95x205x41mm

Weight:

425g

Scope of delivery: digital HD saturation meter 1, 230/12 V power supply, 12 V car charger adapter, AV cable adapter, 12 V adapter, instruction manual, protective case with transport strap
