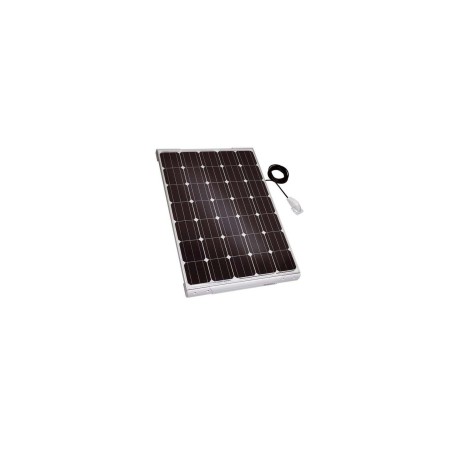

Full solar system Teleco TSP 130 W, rigid

Monocrystalline solar module available in TSP 100 W (flexible), TSPF 110 W (semiflexible) and TSP 130 W (flexible).

details

• Class of application: Class A
• Maximum overcurrent: 10A
• Operating temperature: 85% Rh -40°C~ +85°C
• nominal operating temperature of the cell (NOCT): 46 ± 2 °C
• Temperature coefficient at Pmax (Pmp): - 0.41%/°C
• COV temperature ratio (ß Voc): - 0.31%/°C
• ISC temperature ratio (Isc): +0.045%/°C
• Front cover: tempered glass/3.2 mm
• Monocrystalline cells: 36 pieces, dimensions: 125 x 125 mm
• Frame: anodized aluminium
• Connector (protection degree): IP65

TSP 100W

• Nominal power (Pmax): 100W
• Pmáx (Vmp): 18.5 V
• Pmax (Imp): 5,41 A
• Open circuit voltage (Voc): 22.7 V
• Short-circuit current (Isc): 5,75 A
• Module efficiency (m): 15.2%
• Maximum system voltage: 1000 VDC (IEC)
• Connection box (protection degree): IP65
• Cable (length/section): 650 mm/4 mm2

TSPF 110W

• Nominal power (Pmax): 110W
• Pmáx (Vmp): 19V
• Pmax (Imp): 5,79 A
• Open circuit voltage (Voc): 23.5 V
• Short-circuit current (Isc): 5,79 A
• Module efficiency (m): 16.9%
• Maximum system voltage: 600 VDC (IEC)
• Connection box (protection degree): IP68
• Cable (length/section): 500 mm/4 mm2


TSP 130W

• Nominal power (Pmax): 130W
• Pmáx (Vmp): 19V
• Pmax (Imp): 5,79 A
• Open circuit voltage (Voc): 23.5 V
• Short-circuit current (Isc): 5,79 A
• Module efficiency (m): 16.9%
• Maximum system voltage: 600 VDC (IEC)
• Connection box (protection degree): IP68
• Cable (length/section): 500 mm/4 mm2


accessories

• K2PS: Kit for parallel connection with diodes for 2 solar panels, 2 adapters with 10A diodes, 2 double couplings for negative and positive pole, CPP connectors for extension cables
• TRC: Remote control panel for controllers with 2 SPC 10/2 batteries
• Antiflection solar panel fixing kit: 4 feet in ABS + spoiler for fast panel fixing with self-releasing screws
• aluminum eyelet
• Plastic roof cable entry box
• extension cable of 6 m
• Cleaning and glued kit
• Charge regulator 10 A/12 volts for 1 battery
